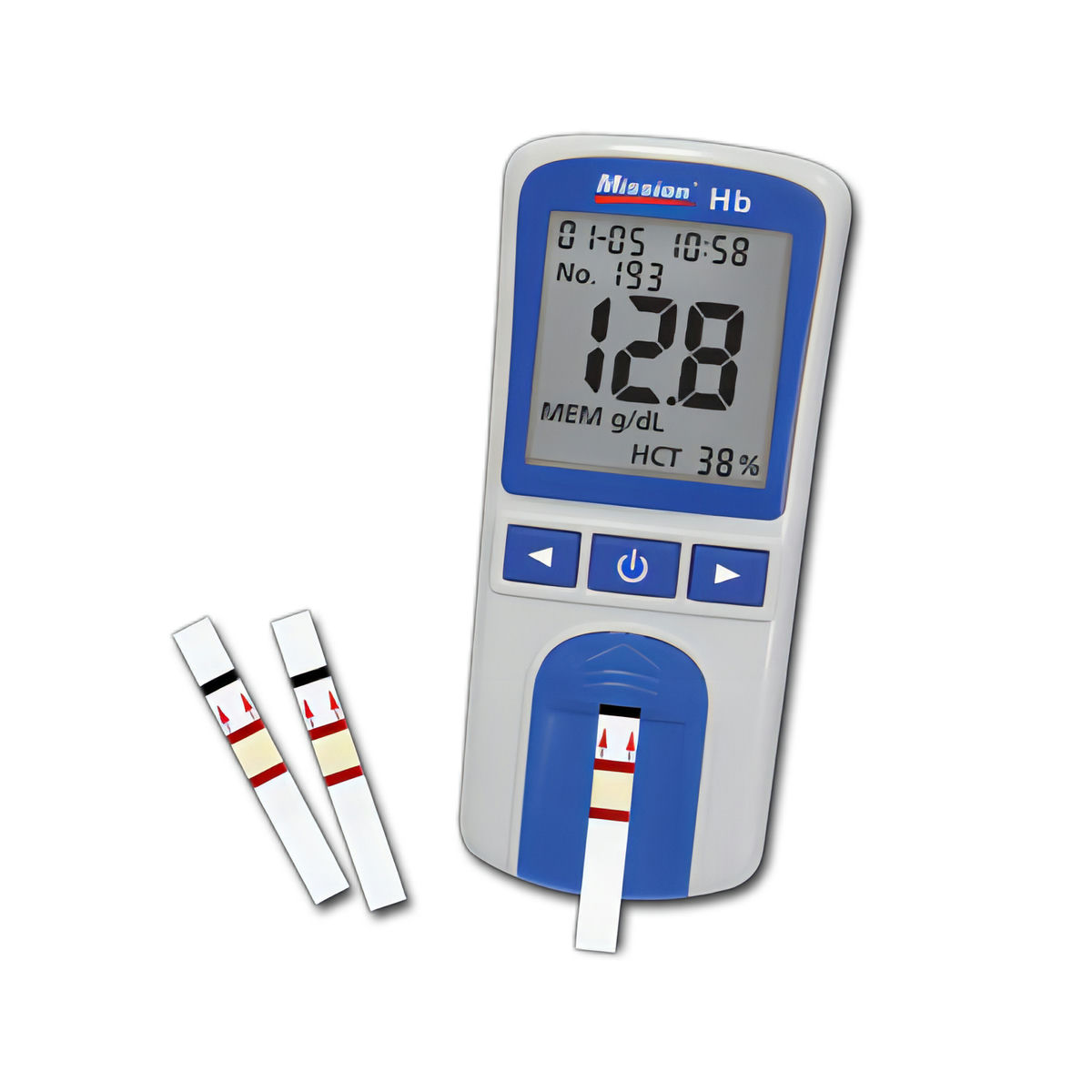

Portable Handheld Mission® Hemoglobin Meter

Introduction

Performance and Value in the Palm of Your Hand.

Main Features

【Designed for POC Testing】

• Portable handheld
• Large, easy-to-read LCD
• Stores up to 1,000 results

【Accurate】

• Precise results equivalent to laboratory analyzers
• Wide Hb measurement range of 4.5 – 25.6 g/dL
• Calculated Hct range of 13 – 75%

【Quick & Convenient】

• Results in < 15 seconds
• Auto-calibration
• Fast data transfer via Mini USB port

Main Performance

1. Methodology: Reflectance Photometry
2. Detection Principle: Methemoglobin
3. Time to Results: &lt; 15 seconds
4. Memory: 1,000 tests with date/time and ID number
5. Specimen Volume: 10 µL
6. Specimen Type: Capillary and Venous whole blood
7. Hb Measurement Range: 4.5-25.6 g/dL
8. Hct Range: 13-75%
9. Wavelengths: 525 nm
10. PC Interface: Mini USB Port
11. Calibration: Automatic
12. Hb Within Run Precision: ≤ 3%
13. Hb Total Precision CV: ≤ 3%
14. Accuracy: Operating Conditions: 10 – 40 ºC (50 -104 ºF); ≤90％ RH; Meter Storage Conditions: 0-50 °C (32-122 °F); ≤90% RH;
15. Strip Storage Conditions: 2-30 °C (36-86 °F); ≤85% RH
16. Strip Shelf Life: 2 years unopened canister; 3 months opened canister
17. Power Source: 3 AAA Batteries or AC Adapter
18. Battery Life: 2,700 tests or 360 hours
19. Automatic Shut Off: 8 minutes

Packaging & Delivery

Meter Dimensions: 127 × 58 × 25 mm (5.0″ x 2.28″ x 0.09″)
LCD Dimensions: 39 × 37 mm (1.54″ x 1.46″)
Accessories:
1*Meter
10*Lancets (26G)
3*AAA Batteries
1*Users Manual
1*Warranty Card
10*Test Strips
1*Lancing Device
1*Carrying Case
1*Quick Reference Guide
1*Lancing Device Insert
1*Test Strip Insert
1*Code Chip
2*Control Strips
1*Control Strip Insert
10*Capillary Transfer Tubes - Plastic
